TV Modulator PLL (Motorolla)

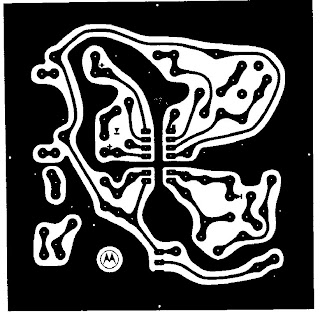

The MC1374 includes an FM audio modulator, sound carrier oscillator, RF oscillator, and RF dual input modulator. It is designed to generate a TV signal from audio and video inputs. This TV modulator based MC1374 IC From Motorola with wide dynamic range and low distortion audio make it particularly well suited for applications such as
video tape recorders, video disc players, TV games and subscription decoders.

The IC features:

* Single Supply, 5.0 V to 12 V
* Channel 3 or 4 Operation
* Variable Gain RF Modulator
* Wide Dynamic Range
* Low Intermodulation Distortion
* Positive or Negative Sync
* Low Audio Distortion
* Few External Components

Untuk Info lebih lanjut klik DATASHEET dan APLIKASI
